PRODUCT
DESCRIPTION
The CGP Series Pipe Crusher by Chenxing Recycling Machinery specializes in efficient grinding of long plastic pipes (16-450mm PE/PP/PVC) and profiles, featuring a horizontal feed hopper for seamless loading of small-diameter pipes. Its heavy-duty welded steel cavity integrates a V-shaped rotor (560-700mm diameter) to boost cutting efficiency by 25% while minimizing dust generation. The anti-blocking safety mechanism automatically pauses feeding when overloaded, ensuring zero material jams even with bulky panels or sheets. Protected by wear-resistant cavity plates and external sealed bearings, this industrial plastic crusher prevents contamination and extends service life. Customize with conveyor systems, dust removal units, or suction fans for high-volume recycling operations. Backed by 20+ years of shredder expertise, Chenxing’s low-maintenance crusher is ideal for processing door panels, PVC profiles, and mixed plastic waste – delivering consistent output flakes compliant with global recycling standards.
ADVANTAGES
- Horizontal hopper design for effortless long-pipe feeding
- Auto-stop anti-blocking system prevents overloads
- V-shaped rotor enhances cutting efficiency + reduces dust
- Modular add-ons (conveyors/dust control) for scalable operations
- Sealed bearing protection against contaminants
TECHNICAL PARAMETERS
| Item | Unit | CGP600/500 | CGP560/700 | CGP560/1000 | CGP700/1400 |
| Feed opening | mm | 440*440 | 640*280 | 910*280 | 1440*320 |
| Rotor diameter | mm | 600 | 560 | 560 | 700 |
| Rotor speed | rpm | 560 | 470 | 470 | 410 |
| Motor power | kw | 37 | 55 | 75 | 110 |
| Number of rotor knives | pcs | 5*2 | 5*2 | 5*2 | 5*3 |
| Number of stator knives | pcs | 2 | 2 | 2 | 2 |
| Hydraulic power | kw | 1.5 | 1.5 | 1.5 | 1.5 |
| Standard screen | mm | 6~30 | 6~30 | 6~30 | 8~30 |
| Chamber size | mm | 516*498 | 716*650 | 985*650 | 1400*700 |
| Machine Length (1) | mm | 2250 | 2400 | 2400 | 2480 |
| Machine Length (2) | mm | 1860 | 2200 | 2200 | 2320 |
| Machine Width (1) | mm | 1350 | 1800 | 2050 | 2400 |
| Machine Width (2) | mm | 820 | 1060 | 1480 | 1840 |
| Machine Height | mm | 1620 | 1750 | 1750 | 1980 |

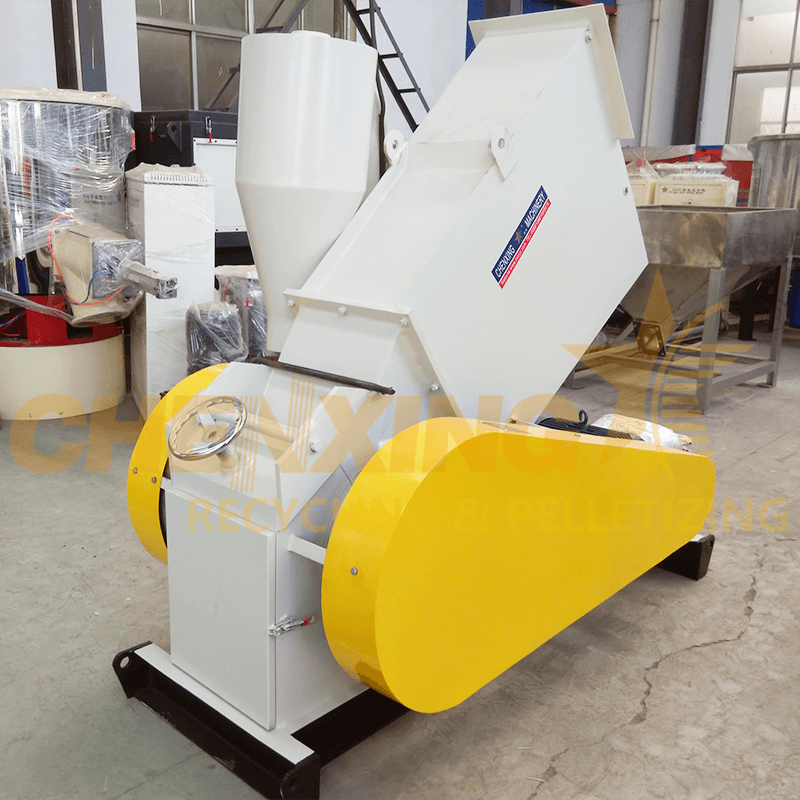

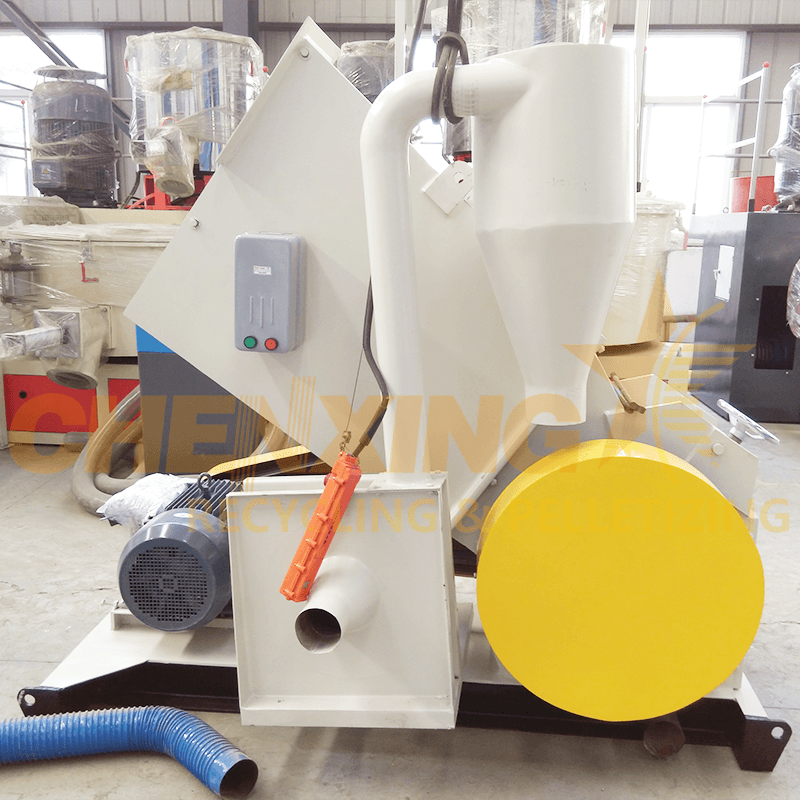

PRODUCTS DETAILS
FAQ
1. What types of plastic pipes can the CGP crusher handle?
The CGP Series is specially engineered to crush long and thick-wall plastic pipes without the need for precutting. It is ideal for materials such as:
-
PVC, PE, HDPE, and PP pipes
-
Corrugated pipes
-
Conduits and cable ducts
-
Water and gas supply pipes
Typical pipe diameters supported range from 160 mm up to 1200 mm, depending on the model.
2. How does the CGP crusher handle long pipes without cutting them first?
Thanks to its horizontal feeding hopper design and hydraulic feeding system, the CGP series allows operators to insert long pipes directly into the crushing chamber. The automatic pushing mechanism feeds the pipe gradually into the rotor, ensuring safe, continuous shredding.
3. What is the rotor structure and cutting principle used in this crusher?
The CGP crusher features a rotor with staggered blades made from hardened alloy steel. The slow-speed, high-torque cutting system ensures even thick and rigid pipes are cleanly ground without bouncing or jamming. The rotor diameter and chamber size are optimized for pipe crushing applications.
4. What is the typical output size of crushed material?
The output granule size is determined by the replaceable screen mesh installed beneath the rotor. Most applications use screens ranging from 12 mm to 50 mm, suitable for downstream washing, pelletizing, or regranulation processes.
5. Is this machine safe to operate with large and heavy materials?
Yes. The CGP crusher includes several safety features:
-
Hydraulic-assisted feeding with safety interlocks
-
Emergency stop buttons
-
Automatic overload protection
-
Fully enclosed feeding zone to protect operators during operation
