PRODUCT
DESCRIPTION

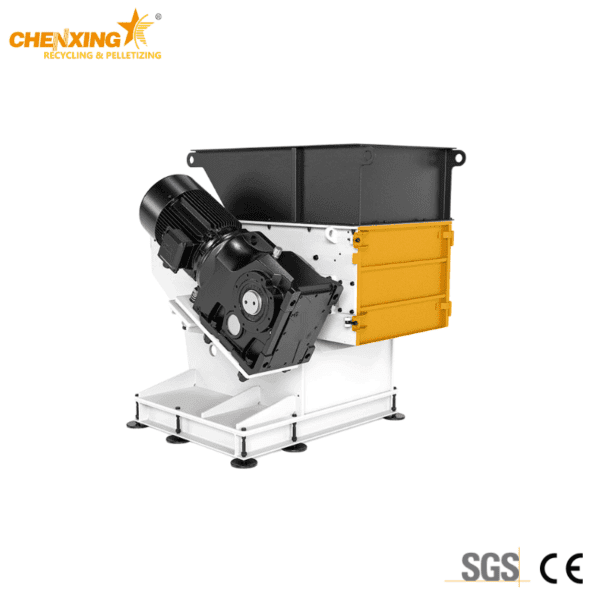

The CLS Series Compact Single-Shaft Shredder by Chenxing Recycling Machinery specializes in small plastic waste shredding, engineered for thin-walled items like pipes, hollow profiles, and injection molding scraps. Featuring a unique tangential feed system that eliminates hydraulic pushers, this low-speed shredder (60rpm) delivers quiet operation through E-type smooth rotors (600-800mm width) and ultra-compact design. Its 4-corner reversible square knives extend blade life 4x, while outboard bearing construction ensures easy maintenance – ideal for SMEs needing space-saving recycling equipment. The plug-and-play intelligent control enables instant startup, and the reducer-driven rotor maintains stable shredding for materials under 10mm thickness. With 30% lower energy consumption vs traditional shredders, this industrial-grade light shredder combines cost-effective operation with Chenxing’s 20+ years of plastic recycling machinery expertise. Perfect for processing purge lumps, sheets, and small-diameter PVC/PP pipes.
ADVANTAGES
- Hydraulic-free tangential feed system

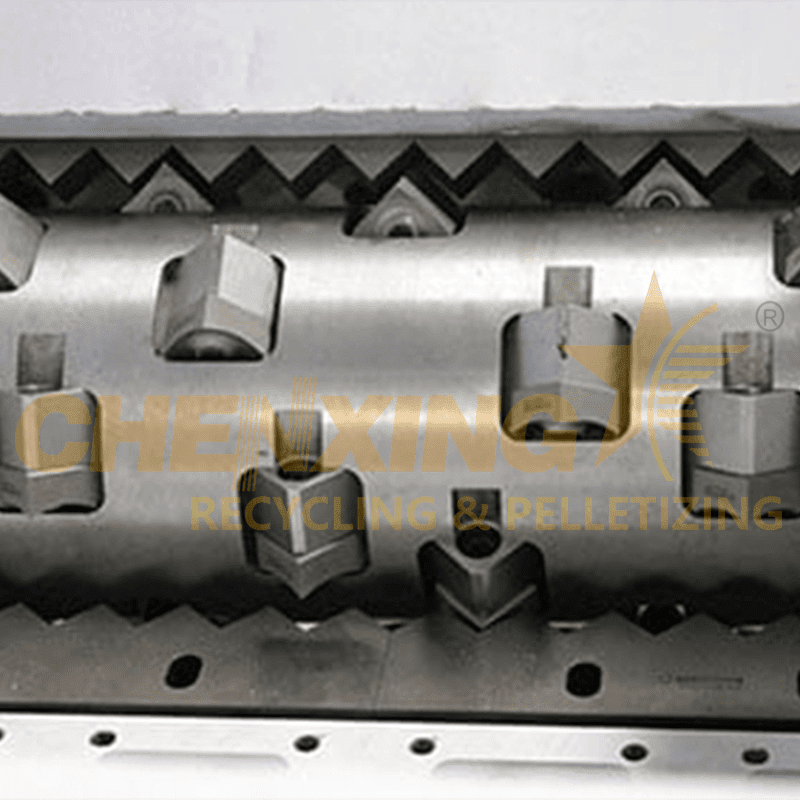

- 4x reusable square knives (4-corner rotation)
- Ultra-quiet 60rpm operation + compact footprint
- Plug-and-play controls for instant deployment
- Optimized for thin-walled plastics (<10mm)
TECHNICAL PARAMETERS
| Item | Unit | CLS600 | CLS800 |
| Feed opening | mm | 580*1200 | 780*1200 |
| Rotor diameter | mm | 250 | 250 |
| Rotor speed | rpm | 61 | 61 |
| Number of rotor knives | pcs | 26 | 34 |
| Number of stator knives | pcs | 2*2 | 2*3 |
| Motor | kw | 18.5 | 22 |
| Machine Length | mm | 1894 | 1800 |
| Machine Width | mm | 1384 | 1500 |
| Machine Height | mm | 580 | 1500 |
PRODUCTS DETAILS
FAQ
1. What types of plastic waste can the CLS series shredder process effectively?
The CLS series is designed to shred thick-wall plastic components and bulky scrap, including:
-
Injection-molded parts
-
Solid HDPE blocks
-
ABS panels
-
Thick-wall PE or PP pipes
-
Blow-molded containers (e.g., drums, tanks)
Its high torque and stable single-shaft design ensure consistent cutting performance even with tough materials.
2. What makes this shredder suitable for limited-space factories or mobile systems?
Thanks to its compact footprint and optimized structure, the CLS series is ideal for installations with limited space. Its small volume and integrated design allow for easy positioning next to extruders, granulators, or washing lines.
3. How thick can the material wall be for effective shredding?
The machine is capable of processing plastic waste with wall thicknesses up to 30–50 mm, depending on the model and blade configuration. This makes it particularly useful for rigid industrial waste.
4. Is the shaft design suitable for continuous industrial operation?

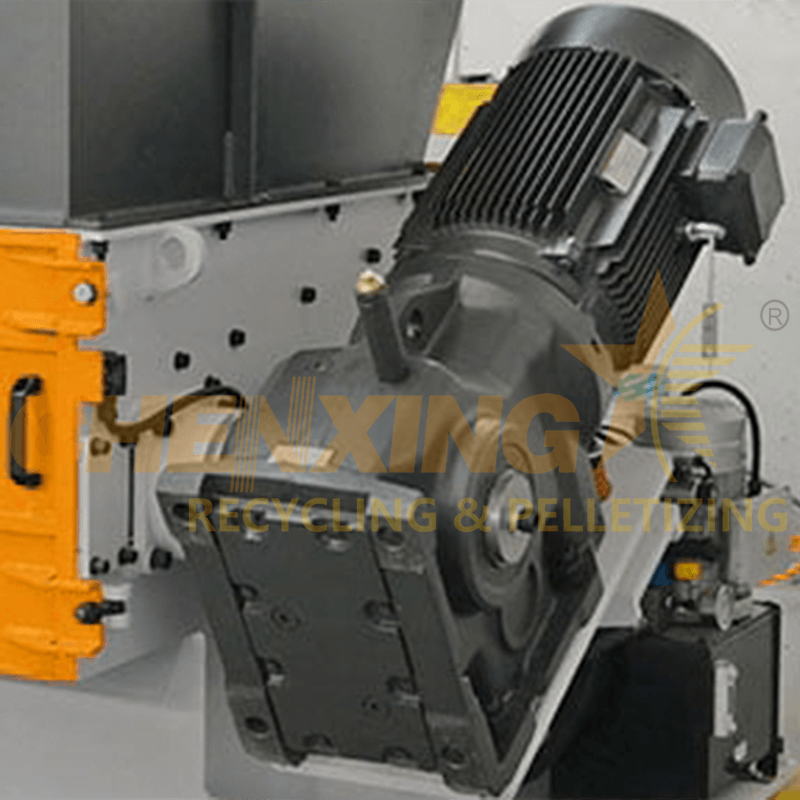

Yes. The shredder uses a heavy-duty, wear-resistant single shaft driven by a high-efficiency gearbox and motor. The cutting chamber is engineered for long duty cycles and minimal vibration, ensuring reliable 24/7 operation in demanding environments.
5. How are safety and operator control handled during operation?
The machine is equipped with:
-
Emergency stop system
-
Overload protection
-
Automatic reverse function in case of jamming
-
Full CE-compliant enclosure and interlocks
The control panel is intuitive and includes PLC-based automation for safer, smarter handling.
