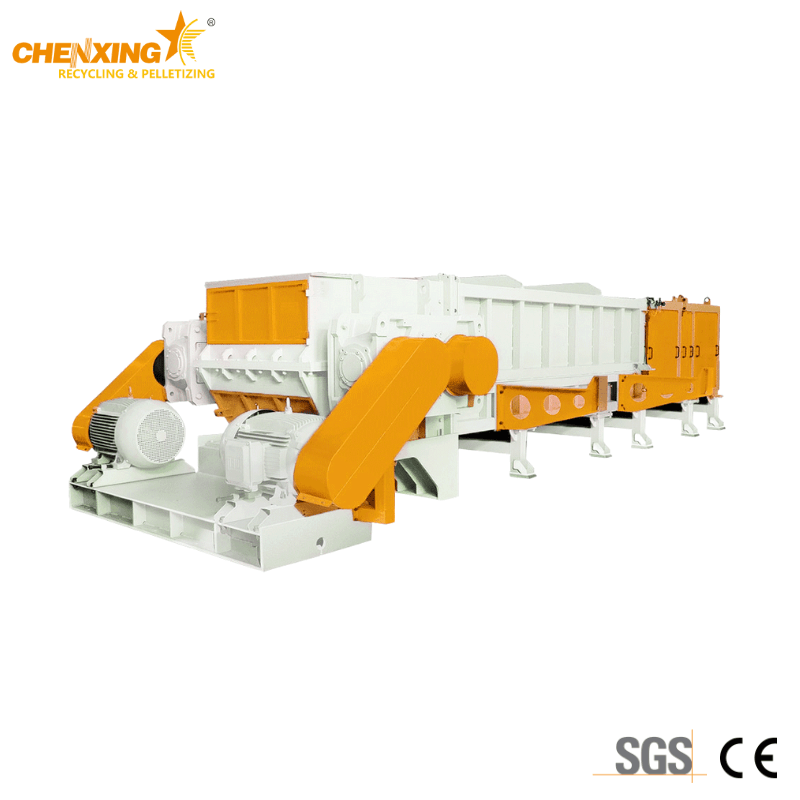

CPS Series Single Shaft Plastic Shredder For Waste Pipe Recycling
The CPS Series Industrial Shredder by Chenxing Recycling Machinery revolutionizes large-diameter pipe shredding, handling HDPE, PP, and PVC pipes up to 1200mm without pre-cutting – a global industry-first innovation. Designed for bulky plastic recycling including pallets, stacked containers, and pipe bundles, this heavy-duty shredder integrates low-speed rotor technology (800-1500mm rotor width) and precision hydraulic controls for smooth operation. With 100+ global installations, it’s the preferred choice for pipe manufacturers seeking turnkey recycling solutions when paired with Chenxing granulators. The oversized hopper processes 3-6m pipes effortlessly, while advanced PLC systems ensure operational reliability. Engineered through 20+ years of shredder expertise, our single-shaft shredder delivers 30% higher efficiency versus conventional models, with optional configurations for industrial plastic waste challenges. Trusted by industry leaders for zero-preprocessing shredding and market-driven innovations.
Recycling & Material：
Advantages：
- Shreds 1200mm pipes without pre-cutting (world-first technology)
- Integrated with Chenxing granulators for turnkey recycling systems
- Robust 800-1500mm rotor + low-speed hydraulic operation
- 100+ proven installations globally
- Customizable for diverse plastic waste (pipes/pallets/lumps)
Specifications：
| Item | Unit | CPS800 | CPS1000 | CPS1500 |
| Feed opening | mm | 3860*700 | 6700*870 | 6700*1300 |
| Rotor diameter | mm | 800 | 980 | 1430 |
| Rotor speed | rpm | 40 | 36 | 23 |
| Motor power | kw | 2*37 | 2*45 | 2*55 |
| Number of rotor knives | pcs | 60 | 108 | 204 |
| Number of stator knives | pcs | 3 | 4 | 5 |
| Hydraulic feeding ram | kw | 11 | 15 | 15 |
| Machine weight | ton | 11 | 20 | 25 |
| Chamber size | mm | 3500*630 | 6000*860 | 6000*1200 |
