Product Overview

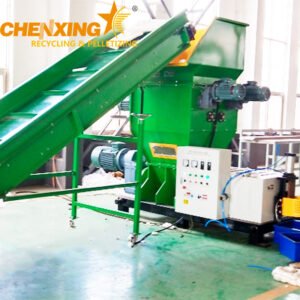

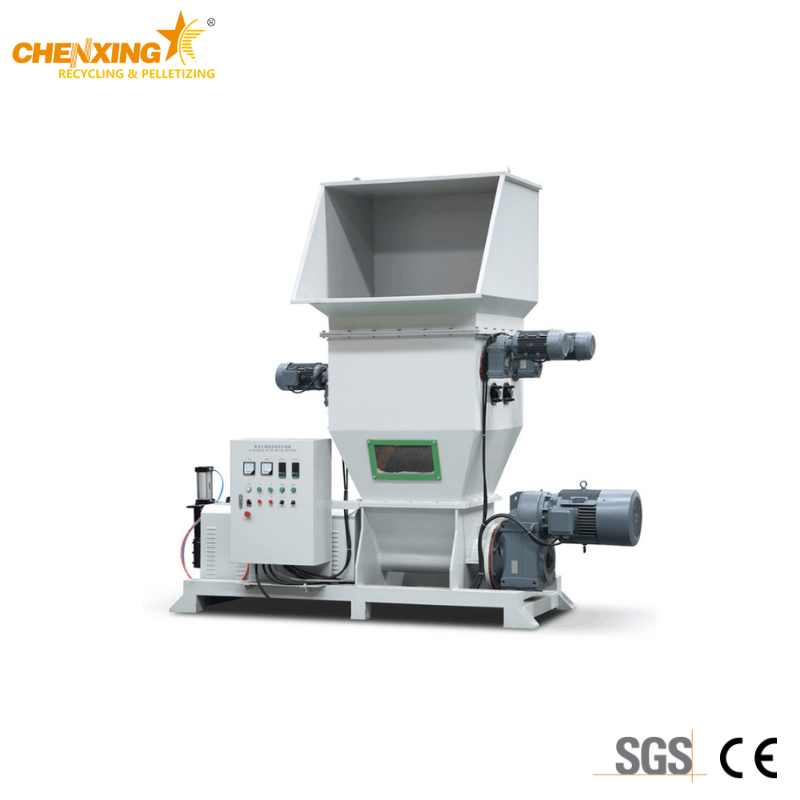

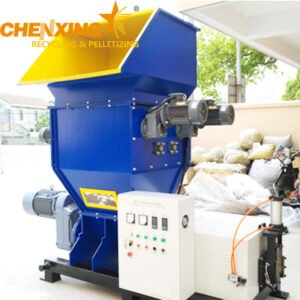

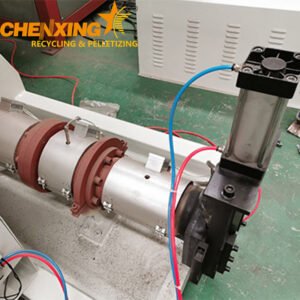

The EPS foam hot melting machine is a reliable plastic melting machine designed to recycle EPS foam waste efficiently. It operates with manual feeding, where the material is crushed by four shaft blades and then transferred through a screen into the main screw barrel. The screw heats and compresses the EPS to a molten state, while the integrated air jam blade cuts the material into compact pieces for easier storage and transport.
Product Features / Advantages
-
Equipped with a deafener system to reduce noise during operation.
-
Features removable cutting blades that can be individually taken out and resharpened to extend lifespan and maintain efficiency.
-
Capable of crushing and melting various types of plastic materials including soft, hard, and foamed plastics like EPS.
-
User-friendly interface ensures easy operation while delivering high output performance for recycling applications.
Application Scope
This EPS foam hot melting machine is suitable for plastic recycling plants, foam product manufacturers, packaging material recyclers, and other operations that require efficient reduction and melting of expanded polystyrene (EPS) foam and other similar plastic materials. It is ideal for reducing storage volume and preparing recycled plastics for reuse or resale.
Product Parameters
| Model | Screw diameter | Screw length | Screw speed | Capacity | Screen hole diameter | Extrusion center height |
| CXHM50 | Φ100 mm | 1050 mm | 150 r/min | 40-50Kg/h | 40 mm | 300 mm |
| CXHM100 | Φ180-120mm | 2500mm | 110r/min | 80-120kg/h | 50mm | 366mm |
| CXHM200 | Φ180-120mm | 2500mm | 110m/min | 180-200kg/h | 50mm | 366mm |
| CXHM300 | Φ197-136mm | 2500mm | 110m/min | 200-300kg/h | 50mm | 400mm |
| Motor power | Heating power | Crusher motor power | Crusher blades quatity | Crusher rotation speed | Size L×W×H | Weight |
| 5.5KW | 4KW | 1.5KW | 9sets | 110r/m | 1410×1085×1600mm | 1000 Kg |
| 15kw | 10kw | 2.2+2.2kw | 9+10sets | 110mm | 2030×1400×2050mm | 1800kg |
| 18.5kw | 14kw | 2.2+2.2+2.2+2.2kw | 9+10+9+10sets | 110mm | 3400×1880×2550mm | 2500kg |
| 22kw | 18kw | 2.2+2.2+2.2+2.2kw | 9+10+9+10sets | 110mm | 4960×4480×4430mm | 2600kg |
FAQs
1. What kind of plastic can this plastic melting machine handle?
It is specifically designed for EPS foam but can also process other soft, hard, and foamed plastic materials.
2. Is it difficult to operate the EPS foam hot melting machine?
No, the machine is easy to operate and requires only basic training to begin using it efficiently.
3. What happens if the blades become dull?
The blades are removable and can be resharpened individually, ensuring continuous performance without the need for frequent replacements.
4. How is the noise level during operation?
The machine includes a deafener, which significantly reduces noise, making it suitable for use in indoor workshop environments.
5. How does the machine handle the melted EPS foam?

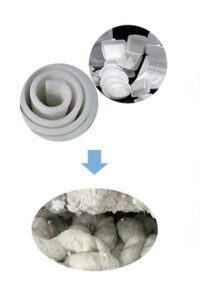

The screw compresses and melts the foam, then the air jam blade cuts the molten material into smaller pieces for easy storage and transportation.
