PRODUCT
DESCRIPTION

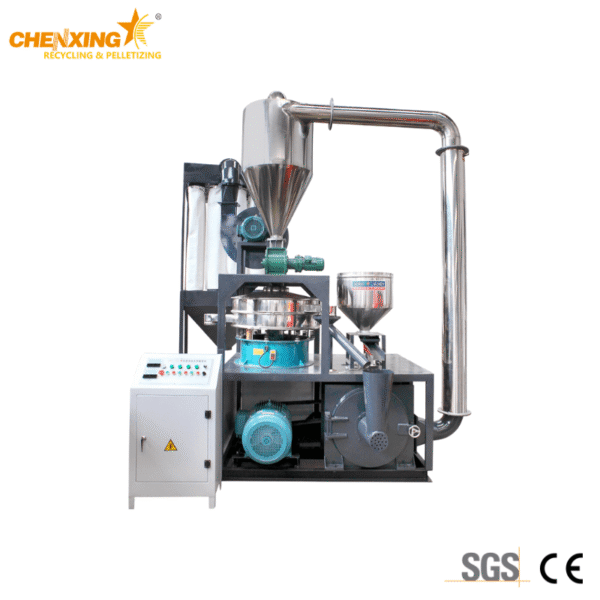

The plastic pulveriser machine is a high-efficiency grinding unit designed for processing various thermoplastic materials. Widely used in the plastic chemical industry, this PVC pulverizer handles materials such as rigid and soft PVC, PE, PS, EVA, SBS, and more. It reduces waste and regrind material into fine powders ranging from 10 to 120 mesh, making it ideal for recycling and reprocessing heat-sensitive plastics.
ADVANTAGES
-
High Efficiency Grinding:
The plastic pulveriser machine uses a high-speed rotating disc with a fixed disc for powerful centrifugal pulverizing, ensuring high throughput and consistent powder fineness. -
Advanced Tool Design:
Equipped with a new blade structure that enhances cutting strength and improves wear resistance, contributing to longer service life and better grinding efficiency. -
Flexible Operation:
Adjustable powder fineness from 10 to 120 mesh, with easy control for diverse production needs. Suitable for processing PVC, PS, PA, PC, and similar plastic types. -
Temperature Control System:
Optional automatic temperature control ensures material quality, especially when processing heat-sensitive plastics. -
Efficient Cooling:
Features air and water-based cooling systems to stabilize machine temperature during long operations. -
Easy Maintenance:
Simple installation and convenient cleaning — the cover opens easily for quick tool change and internal cleaning. -
Dust-Free Operation:
Fully enclosed system design ensures clean working conditions with no powder leakage during the pulverizing process.
TECHNICAL PARAMETERS
| Model | Weight Diameter (mm) | Quantity (pcs) | Vibration Frequency (mm) | Main Motor Speed (RPM) | Main Motor Power (kW) | Feeder Power (kW) | Clamping Machine Power (kW) | Output (kg/h) | Dimensions (L×W×H mm) | Weight (kg) |
| SMF-600 | 400 | 2 | 600 | 37000 | 30 | 4 | 0.75 | 60-100 | 3200×2000×3600 | 1400 |
| SMF-500 | 510 | 2 | 800 | 38000 | 37 | 5.5 | 1.1 | 120-220 | 3500×2200×3850 | 1500 |
| SMF-600 | 610 | 2 | 1000 | 29500 | 45 | 7.5 | 1.1 | 150-300 | 3500×2200×3600 | 1800 |
| SMF-800 | 800 | 2 | 1200 | 30000 | 75 | 11 | 1.5 | 250-450 | 3200×2500×3900 |

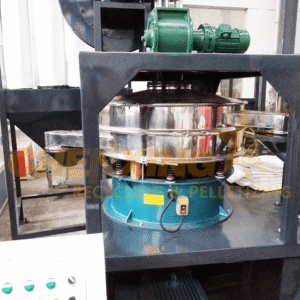

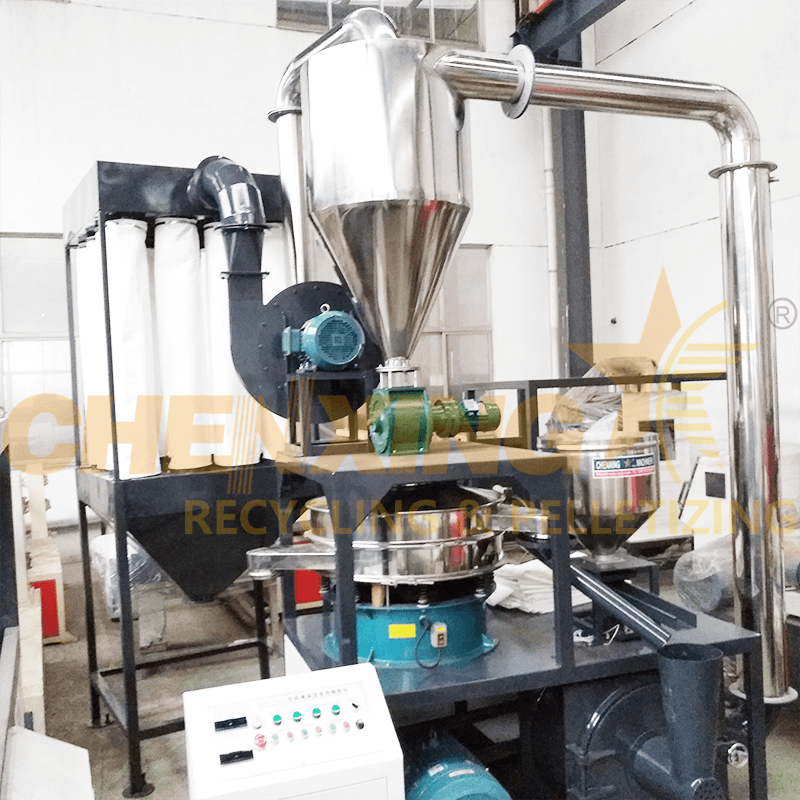

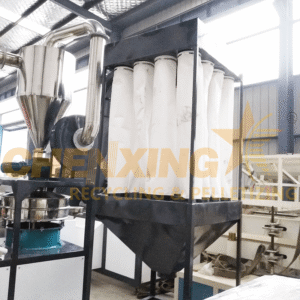

PRODUCTS DETAILS
FAQ
1. What materials can the plastic pulveriser machine grind?
It is designed for PVC (rigid and soft), polyethylene (LLDPE, HDPE), polystyrene (PS), EVA, and other thermoplastics.
2. What is the powder fineness range of the PVC pulverizer?
The powder size can be adjusted between 10 and 120 mesh, depending on your production needs.
3. Is the machine suitable for heat-sensitive materials?
Yes, the machine includes optional automatic temperature control and cooling systems to process heat-sensitive plastics efficiently.
4. How is maintenance handled?
The machine is easy to maintain — the front cover opens fully, allowing users to clean or replace blades with minimal downtime.
5. Does the machine generate dust during operation?
No. The plastic pulveriser machine operates in a fully sealed system to prevent any dust pollution during the grinding process.
