The twin screw extruder is a versatile machine used in plastics manufacturing and recycling, playing a central role in polymer compounding, extrusion, and material reprocessing. In North America, where industry standards and sustainability initiatives are strict, these systems enable manufacturers to meet productivity and quality targets while supporting a circular economy. For example, industry experts note that twin-screw extruders can convert post-consumer and post-industrial plastic waste into high-quality compounds. Characterized by two intermeshing screws rotating inside a heated barrel, the twin screw extruder delivers efficient melting, mixing, and homogenization of raw plastic materials. Designed for high throughput and uniform handling, twin screw extruders allow production of pipes, sheets, films, and reprocessed pellets with consistent quality. This article explores the key design features, operation, and applications of twin screw extruders in plastics manufacturing and recycling.
What Is a Twin Screw Extruder?

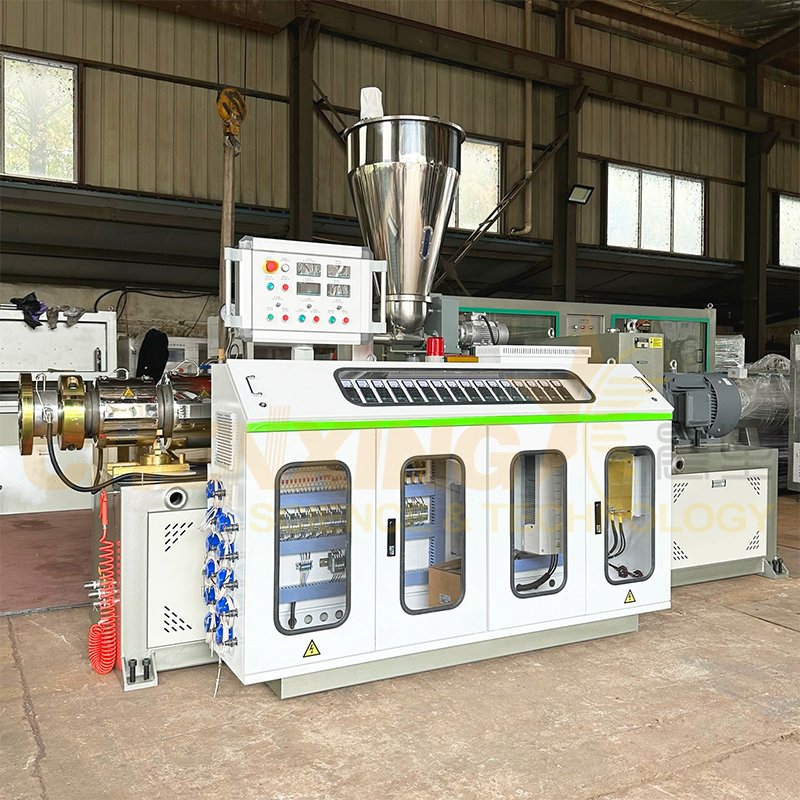

A twin screw extruder machine is a specialized polymer processing system with two helical screws mounted side by side inside a barrel. Unlike traditional single-screw extruders, the paired screws can be configured to rotate either in the same direction (co-rotating) or in opposite directions (counter-rotating). This intermeshing dual-screw design creates intense shearing and mixing action while conveying material through the extruder. The screws “self-wipe” each other, preventing material from sticking. Compared to single-screw machines, twin-screw extruders offer far greater mixing capability and process control. For example, Coperion notes that their co-rotating twin-screw systems can directly feed and mix recycled PET flakes, eliminating the need for separate drying or crystallization steps. In general, the twin-screw configuration reduces residence time and increases output consistency. This allows processors to meet strict tolerances for compounding formulations or recycled materials without compromising quality.
A typical twin screw extruder consists of several essential elements that work together to melt and process materials:
Screw Elements:
The heart of the machine, the screws come in various designs. There are two main orientations: co-rotating screws, where both screws rotate in the same direction, and counter-rotating screws, where they rotate in opposite directions. Co-rotating screws are ideal for aggressive mixing and dispersive kneading, commonly used in compounding and recycling applications. Counter-rotating screws, by contrast, can generate very high compression and shear forces, useful for specific compounding applications (such as rubber or high-density formulations) because their opposing rotation squeezes material effectively.
Intermeshing Design:
The screws are intermeshed; their flights overlap so that they pass very close to each other. This intermeshing action creates high shear and allows material to be continuously wiped off the screw surfaces. As a result, twin-screw extruders excel at homogenizing material: they break down pellets into a fine melt and thoroughly disperse fillers or reinforcements.
Barrel:
The barrel encases the screws and contains multiple independently heated zones. Each barrel section has its own temperature control to create a tailored thermal profile. In the feed zone, the barrel temperature is usually cooler to allow gentle material intake. Further along, higher-temperature zones melt and plasticize the resin. By sectioning the barrel, operators can precisely manage heating and cooling throughout the process. The robust barrel also must withstand high pressure and torque generated by the screw action.
Feed Zone:
This is where solid raw materials—pellets, granules, or flakes—are first introduced through a hopper. The feed zone’s design ensures a steady and controlled material intake onto the screws. Often, side feeders or gravimetric feeders are integrated for adding colorants, fillers, or liquid additives into the melt at specific points along the screw.
Melting and Conveying Zone:
As material travels on the screws, it enters the melting zone. Here, shear from the screw action and heat from the barrel combine to gradually melt and plasticize the polymer. Melted resin is then efficiently conveyed forward by the screw flights. The design of the screw profile (pitch, depth, and flight angle) controls the rate of conveying versus compression, allowing gradual or rapid melt formation as needed. This ensures complete melting before the material moves to the next stage.
Kneading and Mixing Zones:
Once the material is fully molten, it passes through specialized kneading blocks or mixing elements on the screws. These sections introduce extra shear and extensional flow to uniformly distribute additives (such as fillers, plasticizers, or recycled particles) throughout the melt. The intensive mixing action breaks up agglomerates and ensures a homogeneous blend. This deep mixing is a key reason twin screws are chosen for masterbatch and compound production.
Venting and Vacuum Zones:
Many twin screw extruders include one or more vent ports along the barrel. These vents allow moisture, monomers, solvents, or other volatile impurities to escape, often under applied vacuum. Degassing is especially valuable in recycling (to remove residual moisture or odors) and in food/pharma (to strip solvents or gases). As Thermo Fisher notes, co-rotating twin screws provide a “large degassing surface to remove odor and volatile contaminants”.
Die:
At the extruder’s discharge, the molten plastic is forced through a die to form the final shape. Dies may produce strands (for pelletizing), sheets, pipes, profiles, or film. Downstream equipment like strand cutters, underwater pelletizers, calibrators, or chill rolls then cool and cut the product to size. Because the melt from a twin-screw extruder is well-homogenized, the die-fill is uniform, resulting in consistent product dimensions and properties.
By combining these components in a modular design, engineers can adapt a twin screw extruder to many tasks. Sections of screw can be added, removed, or swapped (modular screw technology) to optimize for specific throughput, pressure, or mixing needs. This flexibility is why twin screws are often considered a “versatile platform” for handling new formulations or waste streams in plastics production.
Operating Principles: Material Processing Steps
The extrusion process in a twin screw machine can be understood step by step:
1.Material Feeding:
Polymer pellets, chips, or recycled flakes are metered from a hopper into the extruder. Modern systems often use multiple feeders, allowing a blend of virgin resin, recyclate, and additives to enter simultaneously. This ensures precise control over the formulation of the melt.
2.Conveying and Compression:
Once on the screws, rotation begins to convey the material forward. The screws’ flight depths change along the barrel – larger at the feed zone, then gradually shallower – which compresses the solid bed and builds pressure. This pre-compression helps frictionally heat the material before melting.
3.Plasticization and Melting:
As the material is conveyed, the combination of barrel heat and mechanical shear raises its temperature. Pellets begin to melt and plasticize. By the end of the melting zone, the polymer is fully molten. Heating elements in each zone are carefully controlled to achieve the ideal temperature profile for the resin.
4.Intensive Mixing and Homogenization:
After melting, the material enters kneading and mixing zones. Here, the screws knead the melt vigorously, breaking it into thin layers. If additives (fillers, pigments, recycled particles) are present, these sections ensure uniform dispersion. The result is a homogeneous melt with additives fully integrated. This level of mixing is far superior to what a single-screw extruder can achieve.
5.Pressure Build and Die Feeding:
The screws continue to build back-pressure as the melt approaches the die. If a gear pump or melt pump is used downstream, it further stabilizes pressure and flow. The molten plastic is forced through the die or tool, taking the desired shape (strands for pelletizing, tube for pipe, sheet for film).

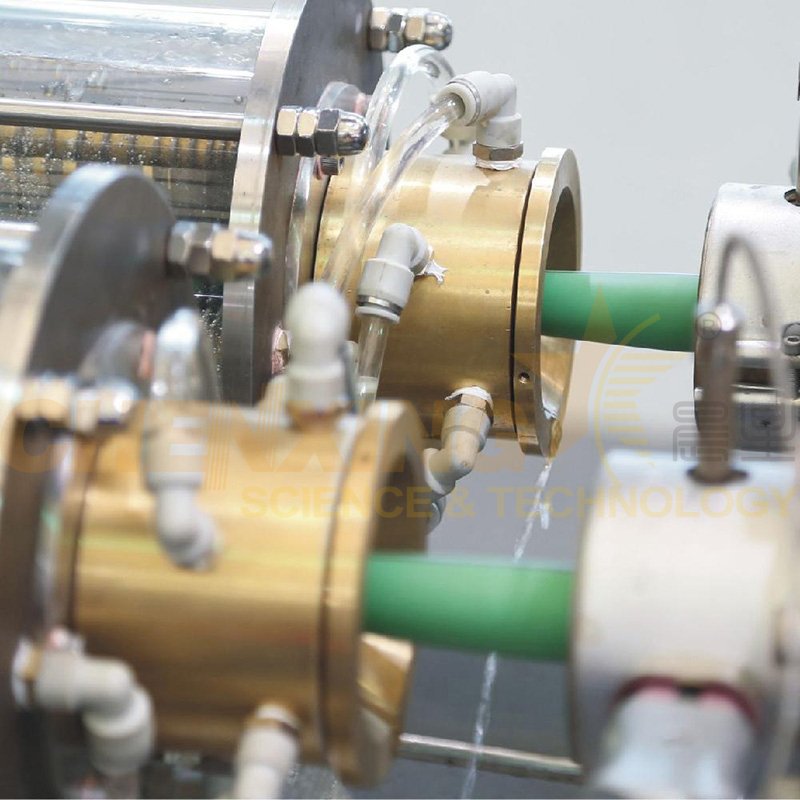

6.Cooling and Calibration:
Immediately after the die, the extruded product is cooled to solidify. For pellet production, strands pass through a water quench before pelletizing. For profiles or pipes, vacuum calibration tanks and water baths set the final dimensions. For film or sheet, chill rolls and air knives set the gauge and surface finish. The cooling method depends on product shape and extrusion speed.
At the core of this operation is the twin screw’s self-wiping action The intermeshing flights continually sweep each other, preventing material buildup and ensuring even heat distribution. This enables the extruder to run continuously with minimal downtime. These capabilities translate to high efficiency: as Torontech highlights, modern twin-screw machines can process “a wide range of raw materials while optimizing energy efficiency,” delivering high-quality product output with lower energy per. In practice, manufacturers find that twin-screw extrusion lines achieve steady throughput with fewer adjustments, making them well-suited to North American production standards.
Advantages of Twin Screw Extrusion
Twin screw extruders provide distinct advantages over single-screw machines, which is why they are often chosen for advanced compounding and recycling tasks:
Superior Mixing and Homogeneity:
The intermeshing screws create strong shear and elongational flow, resulting in complete blending. Torontech notes that twin screws ensure “uniform dispersion of additives or fillers” due to their self-wiping, shearing action. The thorough mixing yields consistent product quality—vital for applications like coloring plastics, filling resin with reinforcing fibers, or blending recycled resin with virgin material.
High Throughput and Self-Cleaning:
Twin screws convey material more positively and rapidly than single screws can. Their constant self-cleaning contact means the screws wipe each other clean, which reduces downtime for cleaning and avoids dead zones. Torontech reports that this design “reduces residence time, ensuring consistent output” across production runs. In the field, this translates to faster production cycles, increased output, and better utilization of factory capacity.
Versatility:
These machines can handle a broader range of materials. Highly viscous polymers, sticky bioplastics, filled compounds, and recycled flakes can all be processed by swapping screw elements or adjusting operating conditions. Abrasive materials (filled with glass, talc, etc.) are tolerated because two screws share the workload. In recycling operations, the ability to accept mixed or contaminated feeds means less stringent sorting is required upfront, saving time and cost.
Precise Control:
Twin screws often have more gentle pressure profiles, resulting in very uniform melt temperatures. The multiple heating zones allow a finely tuned thermal profile, and the vigorous mixing prevents hot spots. This is crucial for heat-sensitive materials. Manufacturers benefit from easy control over target properties (like melt index or melt temperature) by adjusting screw speed and barrel settings without risking process instability.
Improved Melt Quality:
The rigorous mixing produces a very even melt, free of unmixed regions. This homogeneous output leads to stronger, more consistent final products. For instance, in PET recycling, it means new pellets have uniform color and minimal chain degradation. Industry reports emphasize that twin-screw extrusion yields a “higher-value end product” with fewer defects.
Reduced Residence Time:
Because of the efficient conveying action, material spends less time in the heated barrel. For polymers with narrow processing windows, this reduces thermal degradation. A shorter residence time also helps in devolatilization, since moisture and volatiles are removed more quickly.
Modular, Customizable Design:
Modern twin-screw systems are built with modular screw segments, heaters, and barrels. This means the machine can be reconfigured for new processes by rearranging or replacing elements. Maintenance downtime is also minimized, since worn sections can be replaced individually. As one review notes, manufacturers often work with extruder suppliers to tailor configurations for specific needs.
Energy Efficiency:
Twin-screw extruders are often more energy-efficient for compounding tasks. Because they mix internally, they may achieve the required blend with less total mechanical energy. Torontech highlights that their twin-screw designs achieve compounding “while minimizing energy use”. Lower energy per ton of output means lower operating cost and smaller carbon footprint.
These advantages make twin-screw extruders a versatile and efficient choice for demanding applications in plastics, recycling, food, and pharmaceuticals.
Types of Twin Screw Extruders
Twin screw extruders come in various configurations, each suited to different processing goals:

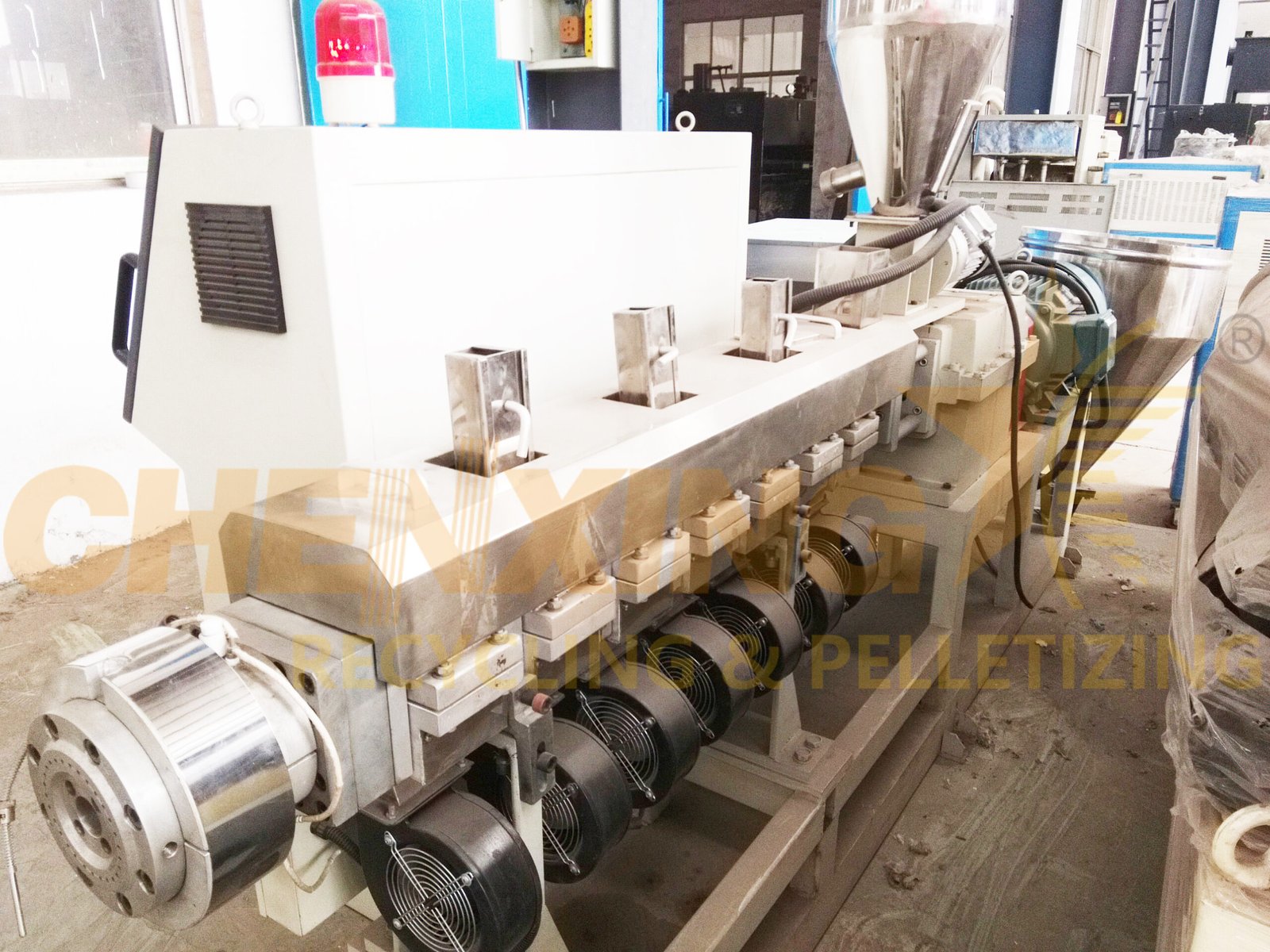

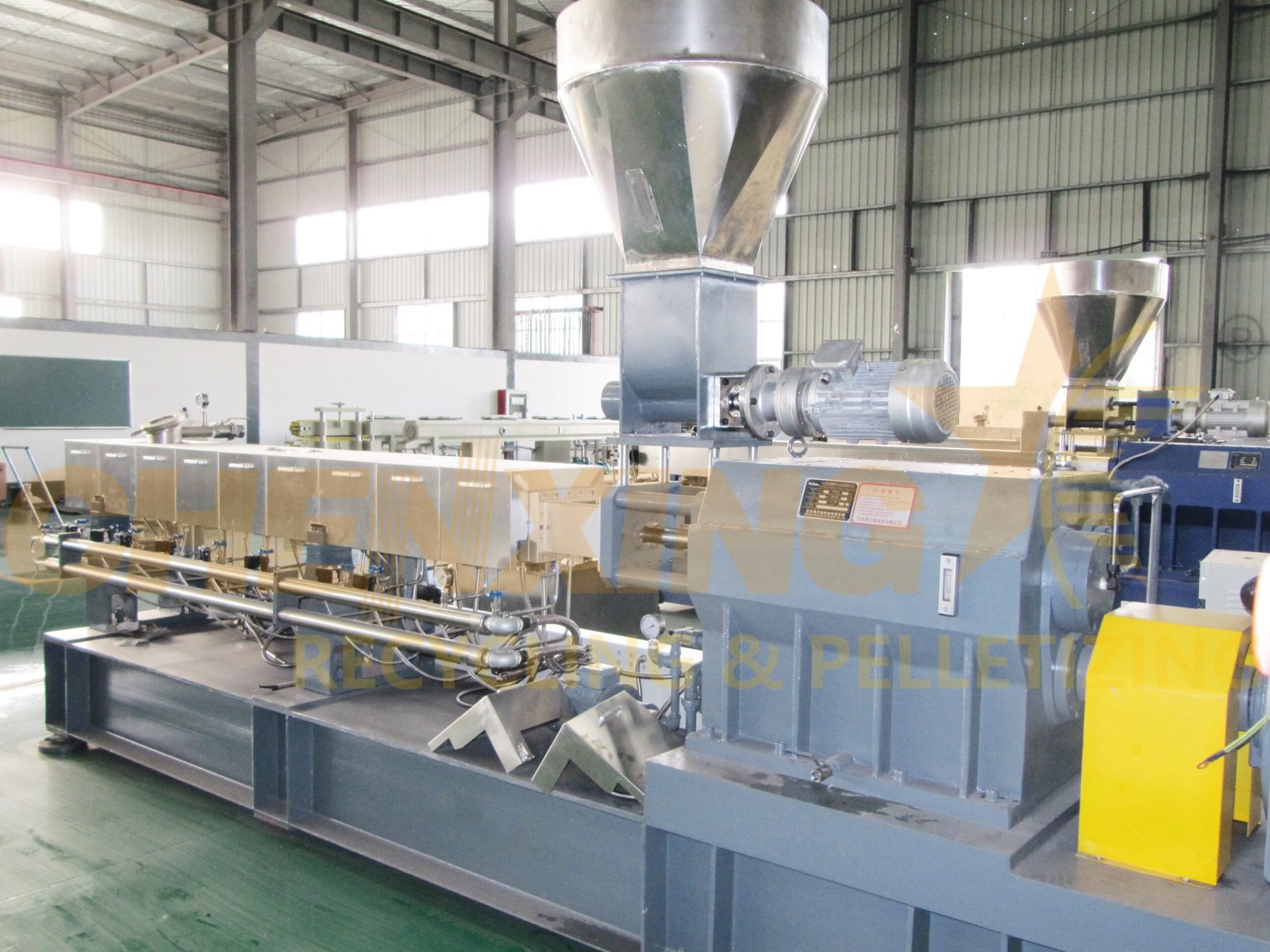

Parallel Twin Screw Extruders:
The most common design, these extruders have two screws of equal diameter running side by side. They may be co-rotating (both screws turning in the same direction) or counter-rotating (each screw turns opposite). Co-rotating parallel screws mix aggressively and are widely used in plastics compounding and recycling. Counter-rotating designs develop higher pressure and are sometimes used in niche applications like rubber compounding.
Conical (Tapered) Twin Screw Extruders:
These extruders have a gradual reduction in screw diameter along their length. The taper creates a built-in compression ratio: material entering at the larger screw end is squeezed as the screw diameter narrows. Conical twin screws are used when very high pressure is required, such as in processes with heavy filler loads or in certain rubber extrusion. The design can also simplify feeding sticky materials, since the feed end is more open.
Co-Rotating vs Counter-Rotating:
Co-rotating screws mix rapidly and offer higher throughput, making them the standard for most plastics and recycling applications. Counter-rotating screws tend to produce even pressure and can mix gently, which can be useful in some food processes or specialized compounding. In North America, co-rotating parallel twin screws dominate the recycling and compounding segments, due to their ability to handle mixed feedstock and deliver consistent output.
Non-Intermeshing Designs:
A few twin-screw designs have screws that do not touch (non-intermeshing). These provide very gentle mixing and are typically used only for niche cases (like some food extruders). They are rare in heavy plastics use.
The choice of extruder type depends on the material and the product requirements. As noted above, manufacturers consult extruder suppliers to select the configuration that yields the best performance for their application. For example, a heavily filled polyolefin compound might be processed on a conical twin screw to ensure sufficient pressure, while a multi-layer sheet line might use co-rotating parallel screws for fast mixing of polymers and pigments.
Applications in Plastics Manufacturing
Twin screw extruders are integral to a wide range of plastics processing operations:
Polymer Compounding:
Many plastics are not used “as is” but are compounded with additives (UV stabilizers, plasticizers, flame retardants, etc.). Twin screws are the workhorses of compounding, creating masterbatches and color concentrates with precise additive dispersion.
PVC (Vinyl) Processing:
PVC, used for piping, window frames, and more, is often processed on twin screws because of its sticky nature. The extruder’s uniform mixing and tight temperature control produce a stable PVC melt. The result is high-quality PVC products without thermal degradation.
Profiles, Pipes, and Sheets:
Many extrusion lines for pipes, profiles, and sheets use a twin screw extruder (often followed by a gear pump and extruding die). In such cases, the twin screw serves as the main melting and blending step for the input resin. For multi-layer co-extrusion, different twin screws might feed different layers. For example, production lines may use twin screws to handle recycled inner layers and virgin outer layers simultaneously, achieving a combined product with desired properties.
Masterbatch and Compounds:
Colored or additive masterbatches are manufactured on twin screws. High shear ensures even pigment distribution, allowing manufacturers to create concentrated color batches that are later diluted. Similarly, filled compounds (plastic with glass or other reinforcement) are made by twin screws, which thoroughly mix the filler into the melt.
Plastics Recycling:
Recycling facilities use twin screws to produce usable pellets from scrap. Shredded plastic scrap is melted and often blended with virgin resin and additives on a twin-screw extruder, then pelletized. The homogeneity of the twin-screw mix ensures the recycled pellets meet quality standards for reuse.
Fiber, Filament, and Nonwoven Production:
In processes that make plastic fibers (for textiles, filters, etc.), twin screw extruders can be used to compound the polymer melt before it is spun.
In all these manufacturing roles, the twin-screw’s ability to produce a uniform melt translates directly into high-quality end products. North American manufacturers in packaging, automotive, electronics, and consumer goods rely on twin screw compounding lines for these reasons. As one industry source puts it, these machines are “designed for high efficiency in various plastic production environments,” producing outputs that meet strict specifications.
Applications in Plastic Recycling and Sustainability
Twin screw extruders are pivotal in recycling processes, aligning with sustainability goals in North America. Their robust mixing and devolatilization capabilities make them ideal for converting plastic waste into usable materials:
Mechanical Recycling:
After plastics are collected and sorted, they are typically shredded into flakes or pellets. A twin-screw extruder then melts and re-compounds this material. For example, recycled PET (from bottles) can be processed by a co-rotating twin screw that directly feeds and homogenizes the clean flake. Coperion reports that their twin-screw PET recycling lines can achieve very high throughput (up to 8 tons/hour) while preserving polymer properties, allowing producers to skip separate drying or crystallization steps.
Devolatilization and Purification:
Recycled plastics often contain moisture, solvents, and volatile impurities. Twin screws provide excellent devolatilization: the constant renewal of the melt surface under shear creates a large area for vapors to escape. Many recycling extruders operate under vacuum to strip out gases. For instance, in PVC recycling, extruders with vacuum vents remove water and HCl, resulting in cleaner recycled resin.
Pelletizing Lines:
Complete recycling lines often integrate twin-screw extruders. A typical setup might include a pre-washer, shredder, twin-screw extruder, and pelletizer. In these lines, the shredder reduces waste to flakes, the twin-screw extruder melts and homogenizes it, and the pelletizer produces consistent granules. The twin screw’s mixing action ensures the final pellets have uniform quality, even when the input scrap is heterogeneous. For example, CX Recycling offers integrated twin-screw pelletizing systems that turn rigid plastic scrap into saleable pellets in one continuous process.
Value-Added Reprocessing:
Twin screws allow processors to add fresh resin, stabilizers, or compatibilizers to recycled plastics on the fly. This means the output pellets can meet stringent specifications (such as FDA or automotive standards), effectively upcycling the material. For instance, twin screws can incorporate UV stabilizers or toughening agents while extruding recycled PET or polycarbonate, making the final pellets suitable for high-value applications.
Chemical Recycling (Emerging):
Twin-screw extruders are also used in emerging chemical recycling processes. High-torque twin screws can mix plastics with catalysts and heat to break them down chemically. USEON describes twin screws that depolymerize PP/PE into shorter hydrocarbons (pyrolysis) or convert PET into its monomers. These continuous extrusion reactors leverage the extruder’s precise control to achieve complete reactions in a closed, solvent-free environment.
Supporting Circular Economy:
By enabling efficient reprocessing of waste, twin-screw systems support circular economy initiatives. The provided content notes that twin-screw extruders convert plastic waste into usable compounds. In North America, where regulations and corporate goals demand higher recycled content, these machines help industry meet those targets. An industry article observes that twin-screw machines “have a lot to offer recyclers—especially when the goal is a higher-value end product”, underscoring their role in transforming scrap into quality recyclate.
In summary, twin-screw extruders not only enhance productivity in recycling lines but also improve the quality of recycled plastic. By combining mechanical and thermal refinement in one unit, they make recycling more economically and environmentally viable.
Choosing the Right Twin Screw Extruder
Selecting a twin screw extruder for a plastics or recycling operation involves several considerations:
Polymer and Process Requirements:
The base resin (PE, PP, PVC, PET, etc.) and its additives determine the required configuration. Highly filled or abrasive compounds may need wear-resistant screws and a robust gearbox. Thermally sensitive polymers require precise barrel control and possibly additional cooling. Working with the extruder manufacturer (or CX Recycling specialists) can help specify the correct screw geometry and barrel setup for a given formulation.
Throughput and Scale:
Desired production rate (e.g., 500 kg/hr vs 5000 kg/hr) dictates the extruder’s size (barrel diameter and screw length). Higher capacity usually means larger and more powerful extruders, which come with greater power and cooling demands. A balance must be struck between plant space and productivity needs.
Process Steps:
Determine if devolatilization is needed (for removing moisture or fumes), and how many feeding points are required (for multiple additives). If on-line pelletizing is desired, the extruder must be integrated with an appropriate pelletizer. For co-extrusion lines, multiple extruders may be synchronized. Each requirement shapes the equipment layout.
Quality and Certification:
Some end-products have strict purity or safety requirements. FDA or EU food-grade certifications, for example, necessitate stainless steel barrels, polished screws, and sanitary design. Similarly, medical or toy applications may have specific standards. A twin-screw extruder can be configured to meet these if needed.
Operational Flexibility:
Will the line make one product or many? A flexible, modular extruder that can be quickly reconfigured is best for multiple grades. If a single product is planned, the extruder can be optimized for that task. CX Recycling can advise on modular designs versus custom-build options.
Energy and Cost Efficiency:
Twin-screw extruders are a significant investment. Users should consider energy consumption per ton of output; twin-screws often achieve savings here, but it should be validated. Maintenance costs and downtime risk are also factors; designs with easy access for cleaning and part replacement can lower life-cycle costs.
Supplier Support:
Working with an experienced supplier is critical. CX Recycling, for example, not only provides the machinery but also offers technical support, spare parts, and startup assistance. Early-stage trials (on lab-scale extruders) or process simulations can ensure the selected equipment will perform as needed.
Overall, a successful implementation involves close collaboration between the manufacturer and the processor. This ensures the chosen twin-screw extruder aligns perfectly with the production goals, whether it’s maximizing throughput, ensuring product uniformity, or enabling advanced recycling capabilities.
Modern Advancements and Considerations

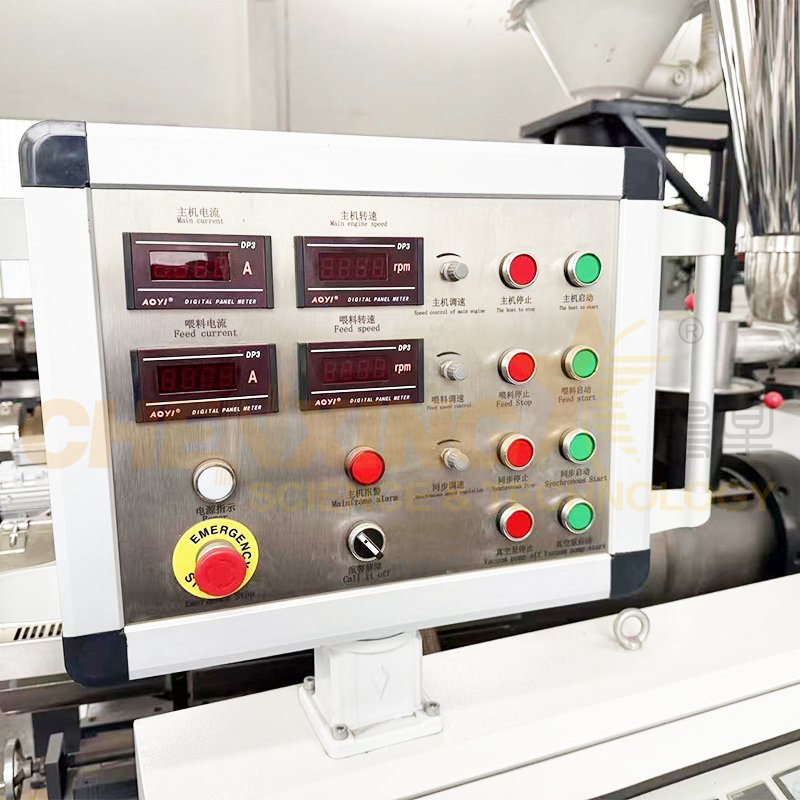

Twin-screw extruders continue to evolve with technology. Many modern machines feature advanced controls and real-time monitoring of key parameters. Industry 4.0 integration—such as recipe-based programming and automated adjustments—helps North American processors maintain tight tolerances and quickly switch between production runs. Predictive maintenance sensors can warn of wear or deviation before downtime occurs. For example, integrated sensors may track torque and pressure across each zone, allowing the control system to optimize temperatures and screw speed dynamically. This digital connectivity not only improves consistency but also enables data-driven optimization of plastic processing lines.
Material developments are also shaping extruder design. New alloys and coatings (like nitrided or carbide surfaces) increase screw and barrel longevity when processing filled or recycled plastics. In addition, smaller “miniature” twin-screw extruders are used for R&D, letting engineers test formulations with small batches. CX Recycling stays current with these trends, offering equipment upgrades and new designs that incorporate the latest extrusion technology.
Industry Trends and Future Outlook
As regulations and market demands evolve, twin-screw extrusion technology is adapting. Legislation in North America increasingly requires recycled content in plastic products, encouraging manufacturers to use more post-consumer material. Twin-screw extruders enable this by blending recyclate with additives or virgin resin to meet strict product standards. At the same time, the rise of bio-based and biodegradable polymers is creating new applications for twin-screw extrusion. These materials often require unique processing conditions (e.g., lower temperatures or special venting), which modular twin-screw systems can provide. Moreover, demand is growing for products like wood-plastic composites and natural fiber-reinforced plastics. Twin screws can mix timber fibers or other biomass into a polymer matrix, opening sustainable options in automotive, furniture, and construction.
Looking forward, we expect twin-screw extruders to incorporate even smarter automation and to handle more diverse feedstocks. Advances such as improved venting technologies or screw designs for low-viscosity materials may emerge. For North American manufacturers and recyclers, staying informed about these developments is key. Twin-screw extruders have proven to be a flexible and future-ready solution, capable of handling next-generation materials and processes.
In summary, twin-screw extruders are a cornerstone of plastics processing. They enable consistent, high-quality manufacturing and recycling in a cost- and energy-efficient way. By partnering with a knowledgeable supplier like CX Recycling, companies can select and implement the optimal twin-screw system for their needs. Contact our extrusion experts at CX Recycling today through our contact form to discuss a custom solution for your plastics manufacturing or recycling operations. Our team will guide you in choosing the right equipment to boost productivity and sustainability.
